5/4" Anti-condens pompgroep 60 °C - vaste brandstof
5/4" Anti-condens pompgroep 60 °C - vaste brandstof
Voor cv-houtkachels, cv-haarden en hout/pellet cv-ketels tot 93 kW
Korte technieche informatie:
- 5/4: binnen en buiten draad
- Tot 93 kW vermogen
- Thermometers zijn tegelijk afsluiters
- Mixventiel 60 °C vaste waarden (indien gewenst ook 45 of 55 graden)
- Wilo Para 30/8 SC pomp (indien gewenst ook Grundfos Alpha 1 L 32-60 of Wilo Stratos Para 30/1-8)
- Isolatie maat 250mm breed en 400mm hoog
- Leidingen hart op hart 125mm
Geen voorraad, moet besteld vaak 2 tot 4 weken in overleg
Technische informatie fabriekant in engels uitgebreid:
BRV solid Fuel boiler pump unit 20555R-F(3/4/5)CS-(A6/P7/P8)

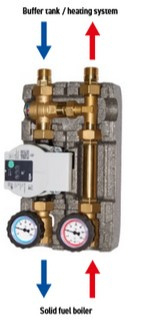

The unit for 1”1/4 (180 mm) circulating pumps consists of:
Supply
• Flanged ball valve supplied with in-handle thermometer (red ring; 0°C-120°C).
• Connection with 20 mbar check valve.
• “T” Connection for thermic valve.
• Connection.
Return
• Connection.
• Recirculation thermic valve with the sensor dipped into the fluid. Start opening temperature: 60°C (F3), 45°C (F4) and 55°C (F5).
• High efficiency synchronous pre-wired circulating pump (for the models that include it).
• Flanged ball valve supplied with in-handle thermometer (blue ring, range
0°C-120°C).
Centre distance 125 mm.
EPP insulation box (Dimensions: 250x400x170 mm).
PN 10, max temperature 100°C (unit without pump).
External connections: 1”1/4 Female.
FIELD OF USE
For power up to 93 kW (with ∆t 20 K) and maximum flow rate 4000 l/h.
Kvs Value: 7.0.
Approximate data calculated with a 8 m head circulating pump (Wilo Stratos Para 30/1-8). For an accurate sizing or for higher flow rates, please refer to the curve.
