5/4" Anti-condens circulatie pomp unit elektronisch instelbaar - vaste brandstof

5/4" Anti-condens circulatie pomp unit elektronisch instelbaar - vaste brandstof van 5 °C tot 95 °C

Voor cv-houtkachels, cv-haarden en hout/pellet cv-ketels tot 90 kW

Korte technieche informatie:

• 5/4" binnen
• Tot 90 kW vermogen
• Thermometers zijn geen afsluiters
• Unit voorzien van 3 x afsluiter in aansluitng
• Elektronisch instelbaar van 5 °C tot 95 °C
• Wilo Para SC/8  pomp

Geen voorraad, moet besteld vaak 2 tot 4 weken in overleg

Technische informatie fabriekant in engels uitgebreid:

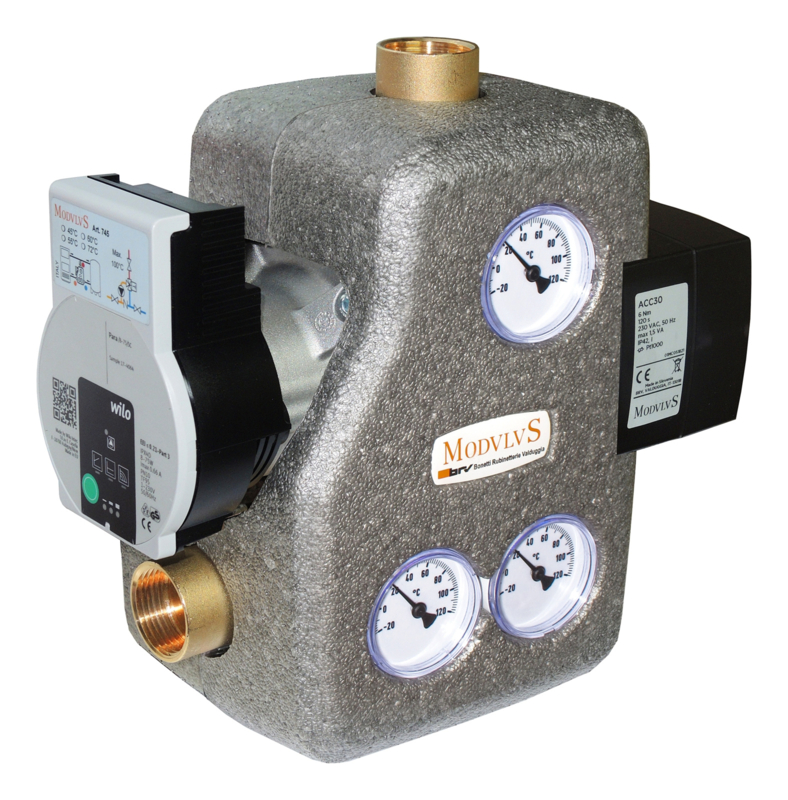

BRV solid Fuel boiler pump unit 205MCCS-P8-(ACC/M21)

The anti-condensation recirculation pump unit allows to connect directly the solid fuel heating source to the heating system or to the buffer tank without the aid of other devices. In fact, the unit encloses the circulating pump, the anti-condensation thermic valve, the excludable natural circulation clapet valve, isolating valves and thermometers in a compact and elegant insulation. It automatically adjusts the temperature of the water returning to the generator to the calibration value of the chosen thermostat.

The device keeps the heat generator at a high temperature (always above that of condensation) in any condition of use, avoiding the formation of sediments both in the boiler and in the chimney flue, thus improving its efficiency and life. Corrosion of the generator or dangerous flue chimney fires are therefore avoided.

 Features

Anti-condensation recirculation and distribution pump unit with thermostatic control of the return temperature to solid fuel heating sources.

Cast brass body CB753S. Yellow brass execution.

• Synchronous high efficiency Wilo Para SC/8.
• Maximum working pressure: 10 bar.
• Maximum temperature: 100°C.
• Calibration temperature: 45°C, 55°C, 60°C and 72°C.
• Natural circulation clapet valve: with external control, it can be set on or off according to the type of installation.
• Temperature thermometers: 0-120°C.

 Nominal opening temperature: calibration temperature + 10 K.

Available external connections: 1” and 1”1/4 female, 28 mm for copper pipe.

 Installation

The anti-condensation recirculation pump unit can be placed on both sides of the heating source, following these directions:

• On the return pipe to the boiler in mixing mode, following the flow directions shown on the body.
• In vertical position (horizontal circulating pump axis) to allow the hydraulic working of the natural circulation clapet valve.

FIELD OF USE

Per potenze Up to 90 kW (con ∆t 30 K) e portata massima di 2600 l/h.

For an accurate sizing or for higher flow rates, please refer to the curves in the technical section.

Function

The anti-condensation recirculation pump unit allows to connect directly the solid fuel heating source to the heating system or to the buffer tank without the aid of other devices.In fact, the unit encloses the circulating pump, the anti-condensation thermic valve, the elecronically controlled mixing valve, the excludable natural circulation clapet valve, isolating valves and thermometers in a compact and elegant insulation. It automatically adjusts the temperature of the water returning to the generator to the calibration value of the chosen thermostat.

The device keeps the heat generator at a high temperature (always above that of condensation) in any condition of use, avoiding the formation of sediments both in the boiler and in the chimney flue, thus improving its efficiency and life. Corrosion of the generator or dangerous flue chimney fires are therefore avoided.

Features

Anti-condensation recirculation and distribution pump unit with electronic control of the return temperature to solid fuel heating sources.

Cast brass body CB753S. Yellow brass execution.

• Synchronous high efficiency Wilo Para SC/8.
• Maximum working pressure: 10 bar.
• Maximum temperature: 100°C.
• Mixing valve with fixed temperature actuator.
• Adjustable diverting temperature from 5 up to 95°C.
• PT1000 contact temperature sensor with fixing kit to be mounted on the pipe.
• Natural circulation clapet valve: with external control, it can be set on or off according to the type of installation.
• Temperature thermometers: 0-120°C.

 Diverting temperature: adjustable from 5 up to 95°C.

Available external connections: 1” and 1”1/4 female, 28 mm for copper pipe.

 Installation

The anti-condensation recirculation pump unit can be placed on both sides of the heating source, following these directions:

• On the return pipe to the boiler in mixing mode, following the flow directions shown on the body.
• In vertical position (horizontal circulating pump axis) to allow the hydraulic working of the natural circulation clapet valve.

FIELD OF USE

For power up to 90 kW (with Δt 30 K) and maximum flow rate 2600 l/h.

For an accurate sizing or for higher flow rates, please refer to the curves in the

 Synchronous circulating pump:

Wilo Para SC/8 (P8)

 Diverting temperature:

adjustable from 5 up to 95°C.

 A version with 3 point actuator is also available (code with final part ...-M21). In this case an electronic external controller is required.
