Sorel XHCC regelaar. (Zeer krachtige uitgebreide regelaar)
Weersafhankelijke verwarmingsregelaar voor een gemengd circuit met warmtevraag en koeling.
Geschikt voor het onladen van een buffertank met een verwarmings menggroep en de warmte vraag regelen van een cv-ketel of warmtepomp
Voorraad, Bij veel indien besteld vaak 1 tot 2 weken in overleg
Zie hier informatie sorel
Artikel nummer 28002 - XHCC
Technische info:
| WEATHER-COMPENSATED HEATING CONTROLLER | XHCC |
|---|
| Temperature control class | VI / 4% |
| Sensor inputs | 17 |
| of which for PT1000 Temperature sensors | 11 |
| of which for remote adjuster | 2 |
| of which for Direct Sensors VVX / VFS / RPS Temperature | 2 |
| of which for Direct Sensors VVX / VFS / RPS flow | 2 |
| Compatible room thermostat | °CALEON / °CALEON Clima / RC20 / RC21 |
| Relay outputs 230V | 6 |
| Relay output voltage-free | 1 |
| Outputs 0..10V or PWM signal (for modulating burner control) | 4 |
| 24VDC output for external devices | bis zu 6W |

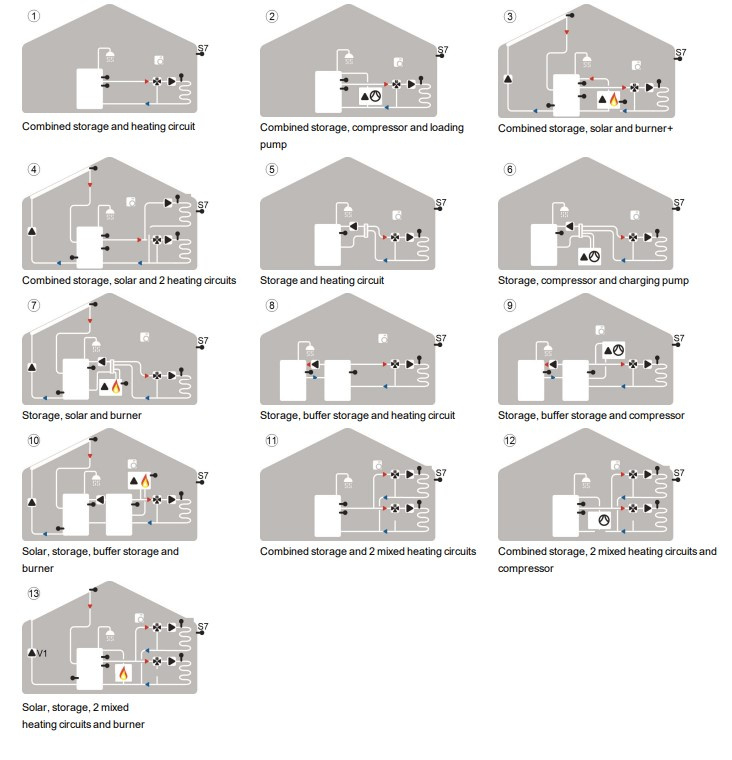

| Number of applications | 13 |
Extension of pre-defined systems
by selectable additional functions | ✓ |
| LEDs red/green for display of operating status | ✓ |
| Programmable thermostat times and functions per day | 2×3 |
| Comfort function for quick heating | ✓ |
| Heating circuit with mixer | 0 – 2 |
| Heating circuit without mixer | 0 – 2 |
| Domestic hot water function with operating times | ✓ |
| Legionella function via solar | ✓ |
| Legionella protecion via additional heating | ✓ |
| Cooling | ✓ |
| Setup wizard | ✓ |
| Solar-System protection | ✓ |
| Solar-Collector protection | ✓ |
| Buffer discharge protection | ✓ |
| Anti-freeze protection | ✓ |
| Seizing Protection | ✓ |
| Solar-Recooling | ✓ |
| Start logic for vacuum tube collectors | ✓ |
| Control program for self-dumping systems (drain-back) | ✓ |
| Function control and error memory with date and time | ✓ |
| Error memory and analysis with date and time | ✓ |
| Input for low energy tariff or PV overproduction (PV contact) | ✓ |
| Menu blocker | ✓ |
| CAN bus connection for SOREL Connect | ✓ |
| Data logging on microSD card | ✓ (only on V2) |
| Ethernet connection | ✓ (only on V2) |
| Dimensions Height x Width x Depth in mm | 228 x 180 x 53 |
| Housing colour | RAL 9003 |
| Protection Class | IP40 |
| Mounting Hardware, Spare Fuse and User Manual | ✓ |
